Power Generating Equipment [ Turbine&Generator ]

Turbine&Generator

LP Turbine Rotor Shaft IP Turbine Rotor Shaft Generator Shaft
Dimension Barrel Dia. 2,597 mm
Barrel Length 5,718 mm
Over All Length 10,420 mm
Barrel Dia. 1,070 mm
Over All Length 7,400 mm
Barrel Dia. 1,805 mm
Barrel Length 6,800 mm
Over All Length 14,250 mm
Weight 144.4 ton 33.0 ton 172.3 ton
Material Super Clean 3.5%NiCrMoV Steel 12%Cr Steel 2.8%NiCrMoV Steel

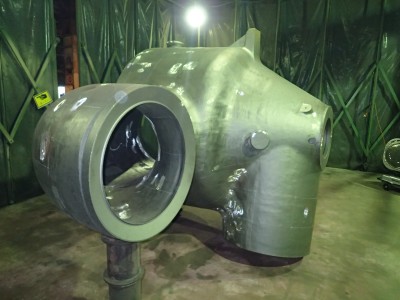

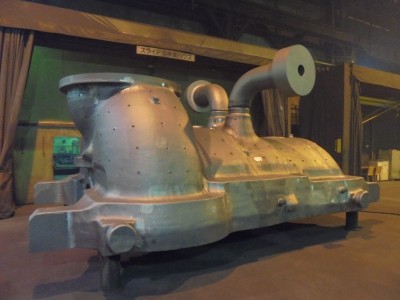

CRV for Power Generation Turbine Casing for Power Generation
Dimension 3,507×2,475×2,252 mm 6,168×4,000×1,980 mm
Weight 22.0 ton 45.8 ton
Material 12%Cr W-Co-B steel CrMoV steel
