Observation of Metallographic
JSW M&E carryies out the metallurgical investigation to assess the degradation of materials based on abundant knowledge and experience as material manufacturer.
Replica Method
Optical Microscope
Scanning Electron Microscope (SEM)
Mechanical Test

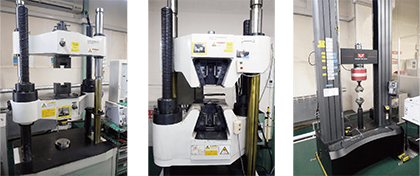

Tensile Test
- Approved standards：JIS,ASTM and ISO
- Range of load：5～1000KN
- Range of temperature：Room Temp.～600℃

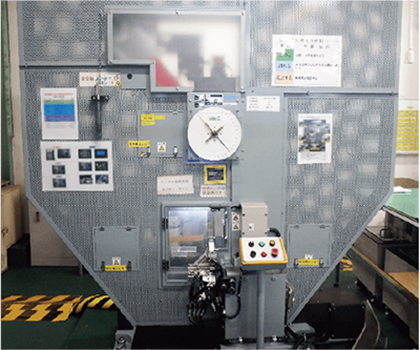

Impact Test
- Approved standards：JIS,ASTM and ISO
- Range of temperature：-196℃～275℃
- Capacity：500J

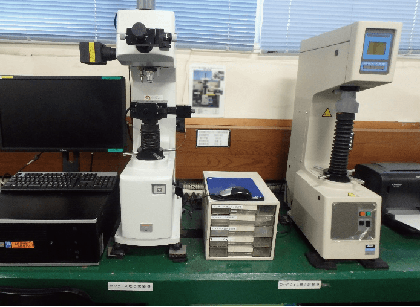

Hardness Test
- Vickers hardness test
- Rockwell hardness test
- Brinell hardness test
